SM186 Siebanlage

Edge

Technische Daten

Transportlänge 16,70 m
Transportbreite 3,00 m
Transporthöhe 4,00 m
Gewicht 38 Tonnen
Arbeitslänge 18,80 m

Beschreibung

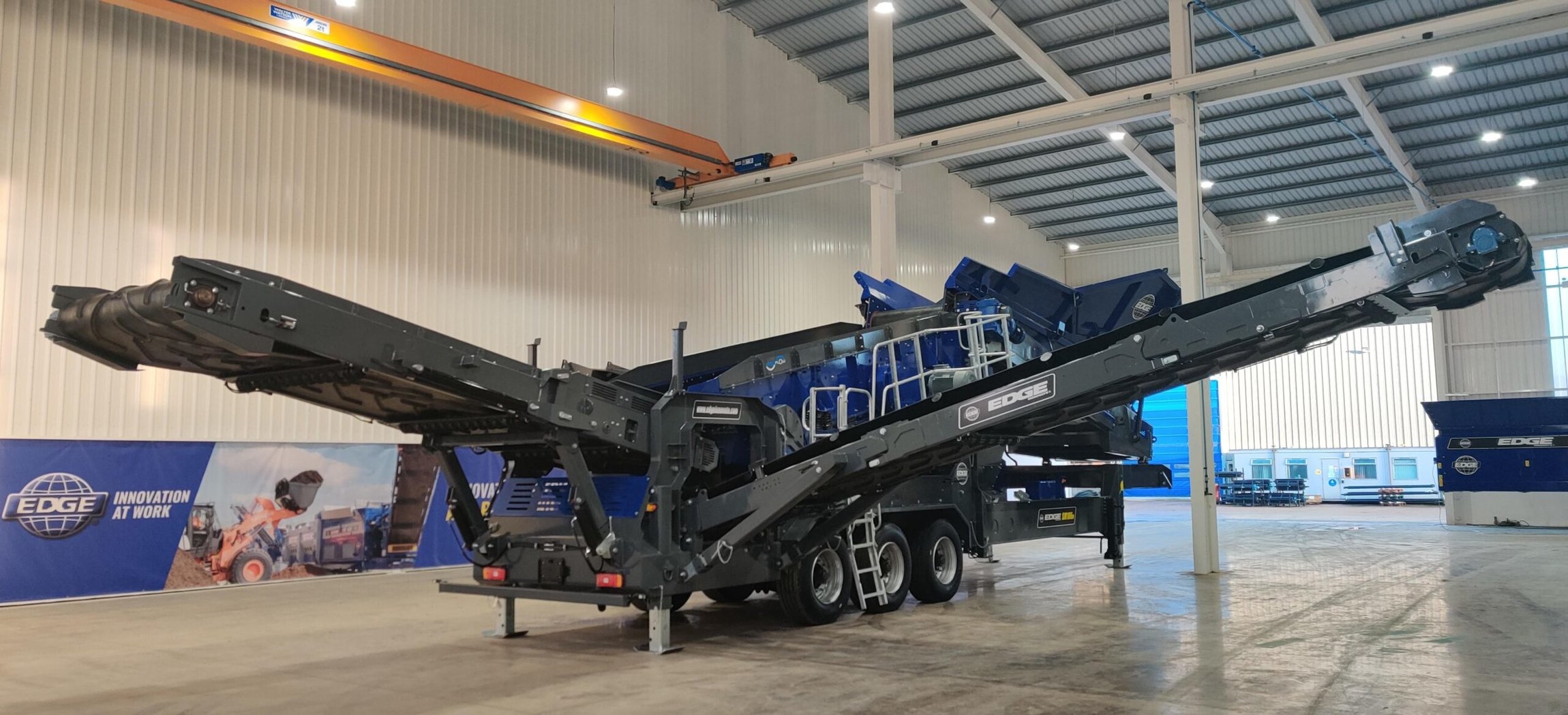

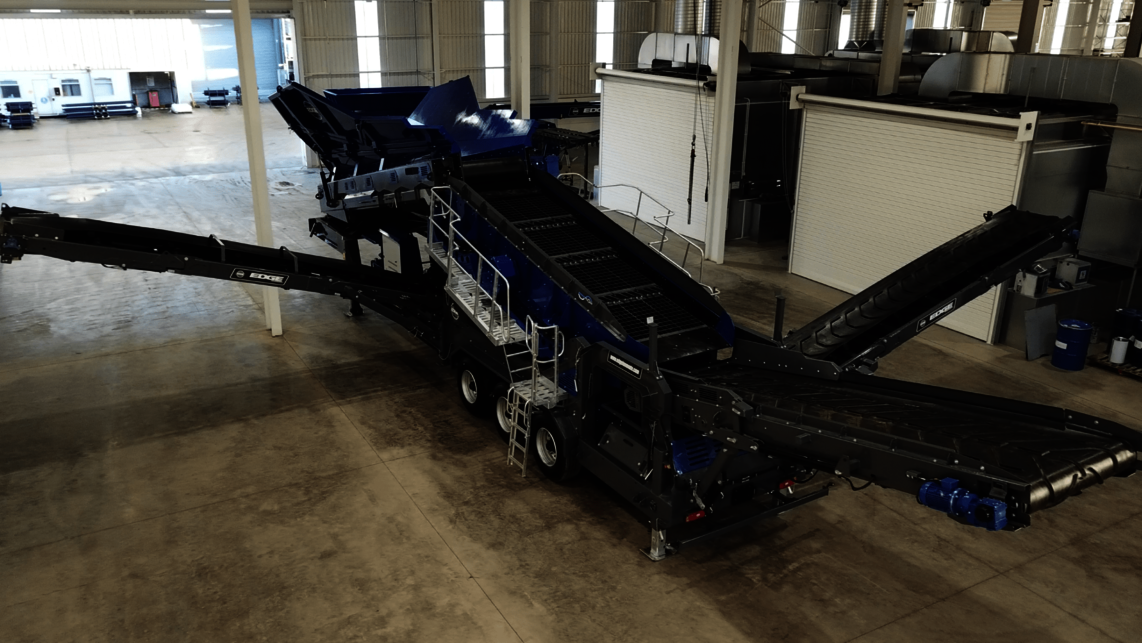

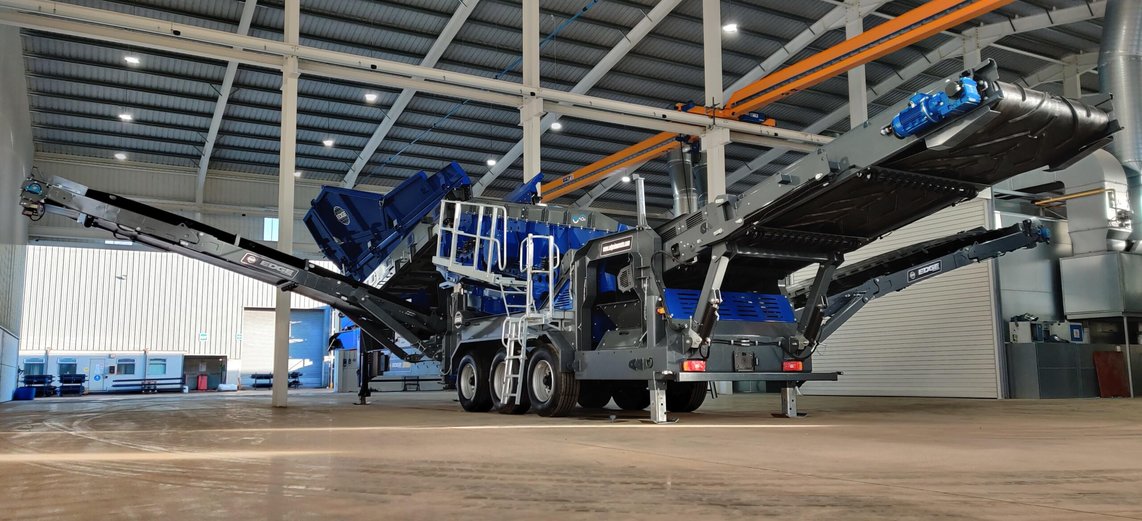

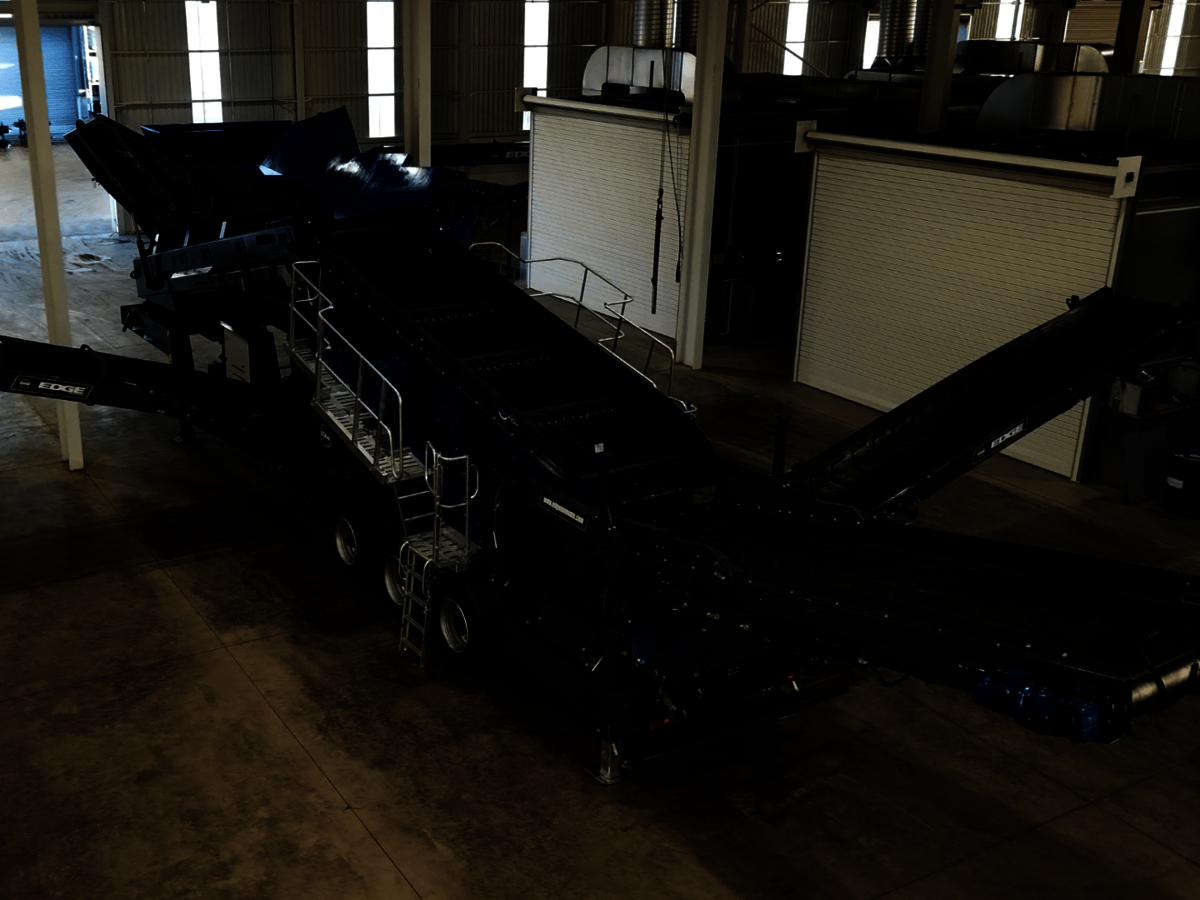

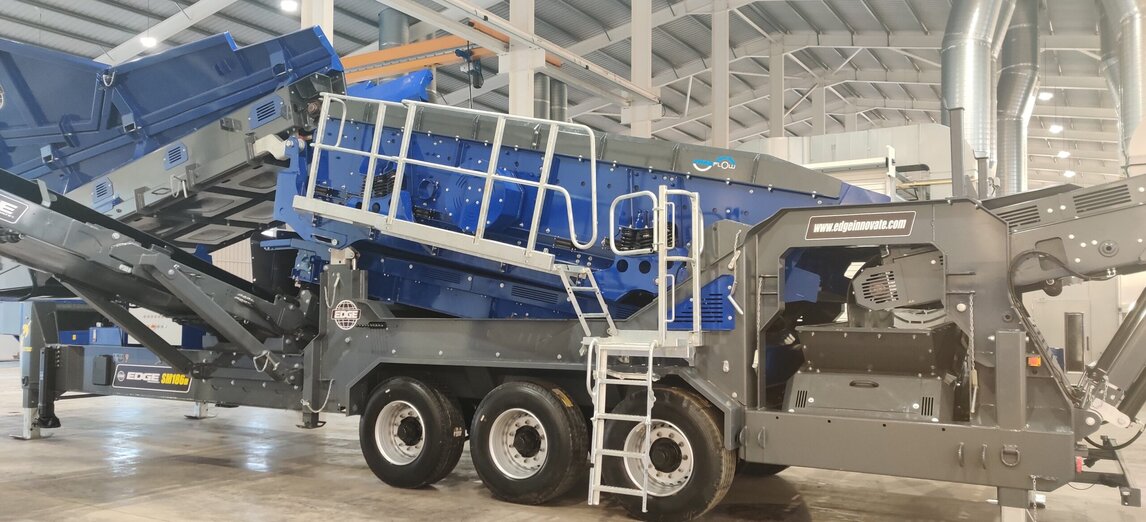

The EDGE SM186 wheeled mounted screener is a highly efficient portable screen plant designed for the most difficult and demanding of applications including recycling, soils, aggregates, compost and demolition waste.

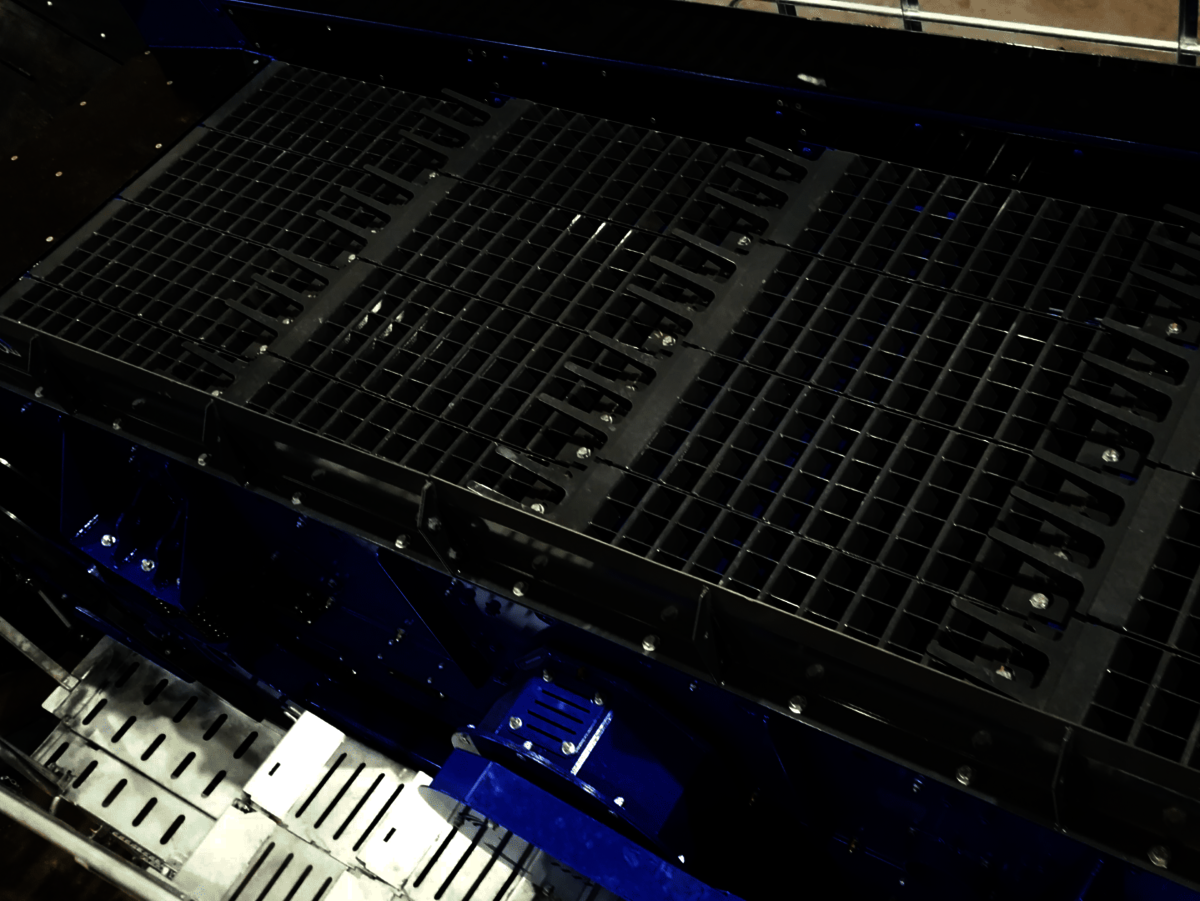

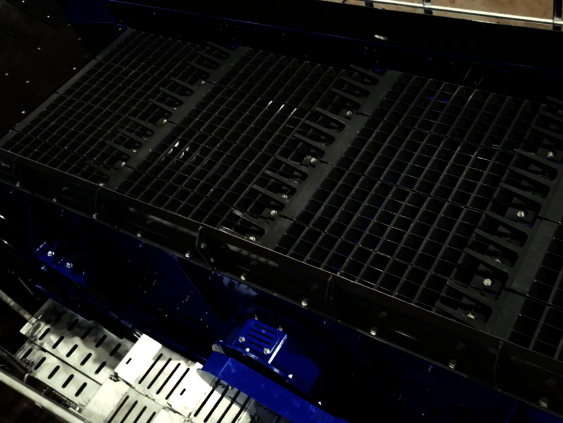

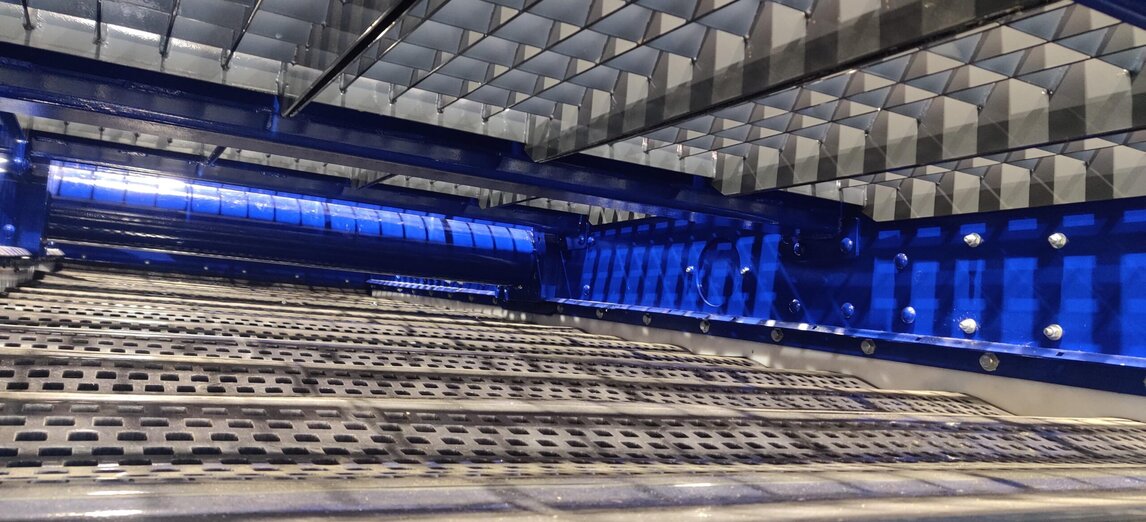

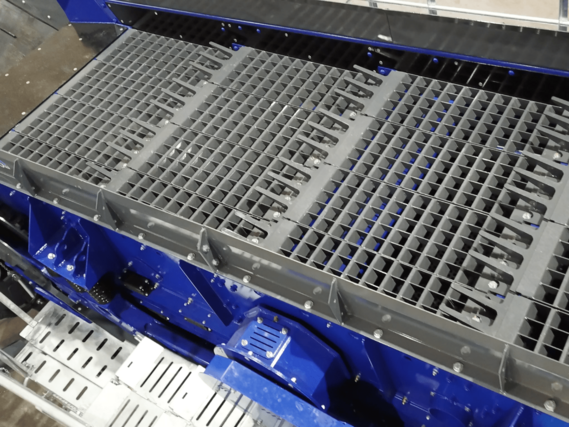

With increased throughput, high efficiency and quality end products; the EDGE SM186 mobile screen incorporates a robust 18’X6’ (5.4X1.75m) two deck screen with interchangeable flip flow and conventional scalper bottom decks. This flexibility combined with numerous screen media options and configurations allows the EDGE SM186 mobile screener to process a wide range of materials and to tackle screening applications that other conventional screens cannot.

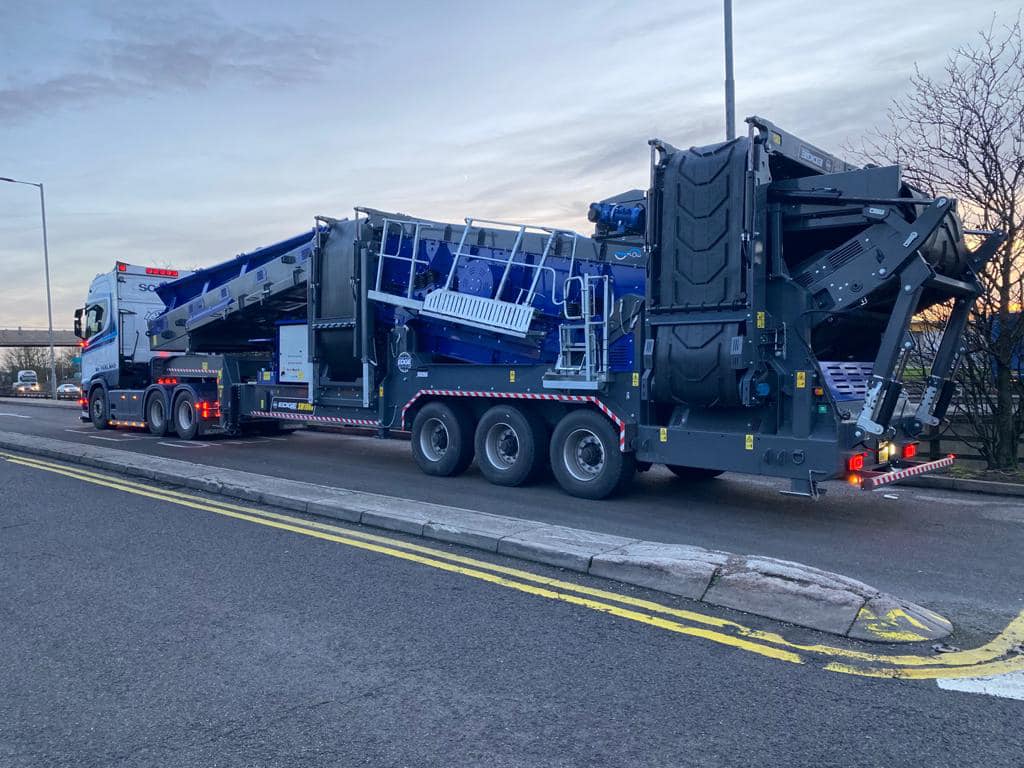

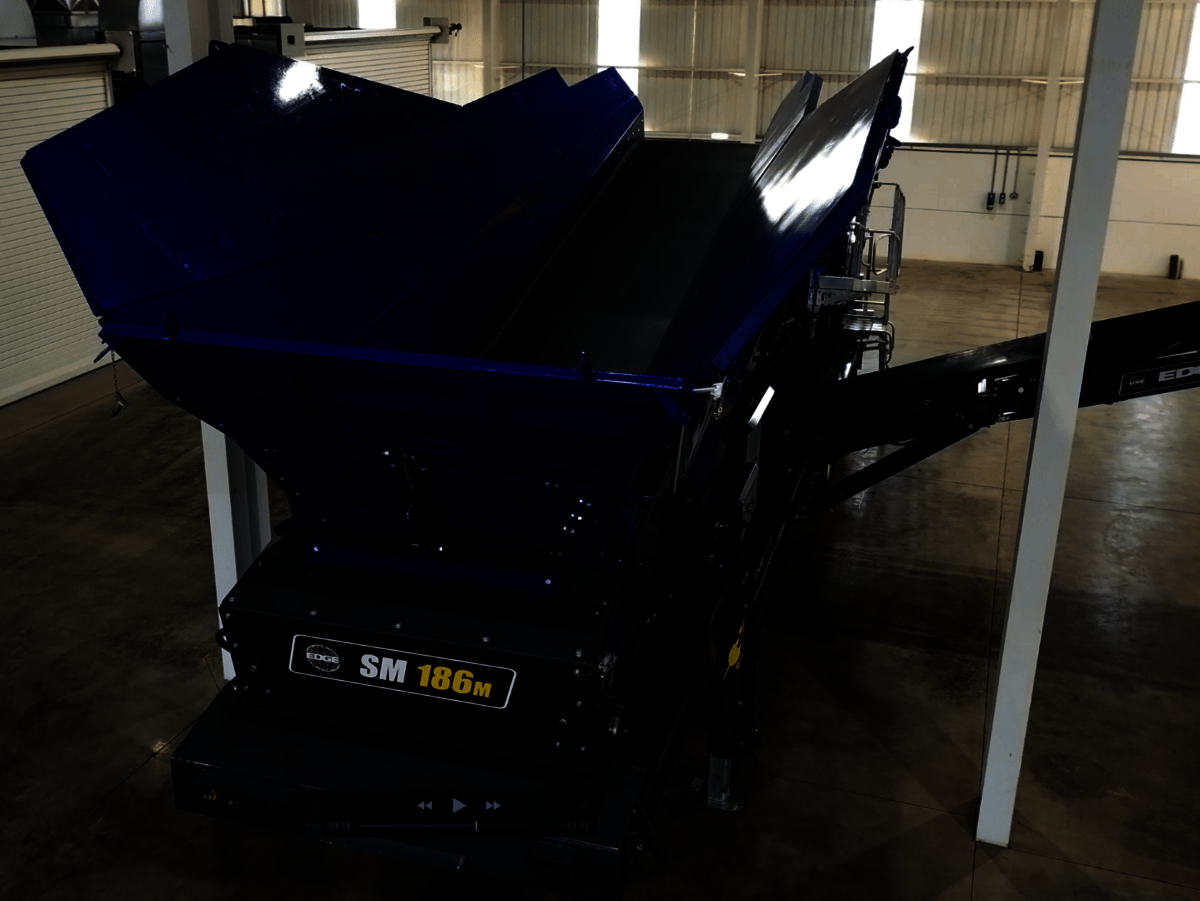

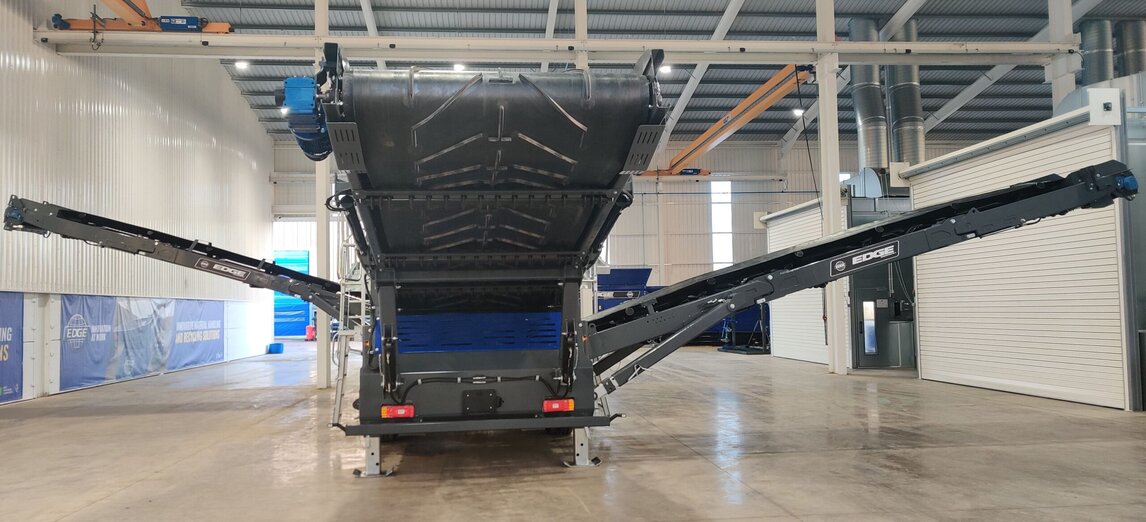

Impressive design features include, a low level feed hopper designed to accept loads from all three sides without the need of construction ramps, 2 or 3 way splitting configuration, hydraulic folding discharge conveyors to facilitate the quick transition from operation to transport and a fully integrated power unit with large service access. A user-friendly control system with sequential start/stop functionality provides exceptional operational performance and unit safety.  Fitted with a tri-axle bogie with an ultra underslung suspension complete with fifth wheel hook-up and air brakes; the EDGE SM186 is exceptionally easy to transport between sites with redeployment taking a matter of minutes.
